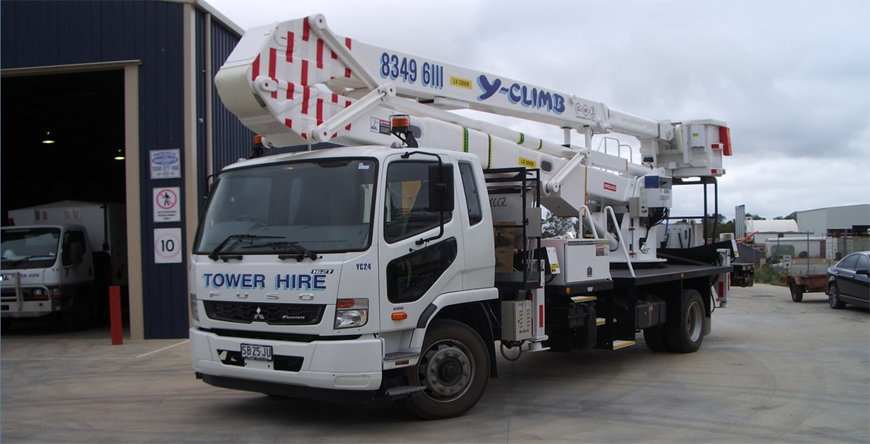

24 Metre Truck Mounted EWP
Download the Range Guide here
LL22.350 Product Specifications
- Range Maximum working height: 24m
- Maximum basket floor height: 22m
- Maximum reach: 12.5m
- SWL 350 kg
- 325 kg – With basket rotator
- Insulation Dry rating: 132/33/LV
- Wet rating: 33/33/LV – Optional
- Low voltage insulation: All metallic portions above 4.5m
- Basket Size: 1200mm x 700mm x 1000mm deep
- Optional: 1500mm x 700mm x 1000mm deep
- Construction: Fibreglass
- Slew 360° continuous
- Stabilisation Front type: Hydraulic up/down – in/out
- Spread: 4.4m
- Rear type: Hydraulic up/down – in/out
- Spread: 4.4m
- Cab chassis 5.3m, 16,000 kg GVM
Standard Features
- CANopen safety control system
- Boom/Stabiliser Interlock
- Emergency Stops (basket, turret, tray)
- Manual Release screws on all boom cylinders
- Over centre valves on all cylinders
- Base controls over-ride basket controls
- Battery/Electric emergency hydraulic power pack
- Emergency descent ropes
- Hydraulic basket tilt
- Flame Retardant Basket
- Conforms with AS 1418.10 and the statutory requirements applicable in Australia
